Model Whirlpool H6358^1 GAS RANGE – Common Parts & Diagrams
04 - BURNER
06 - LOWER OVEN DOOR

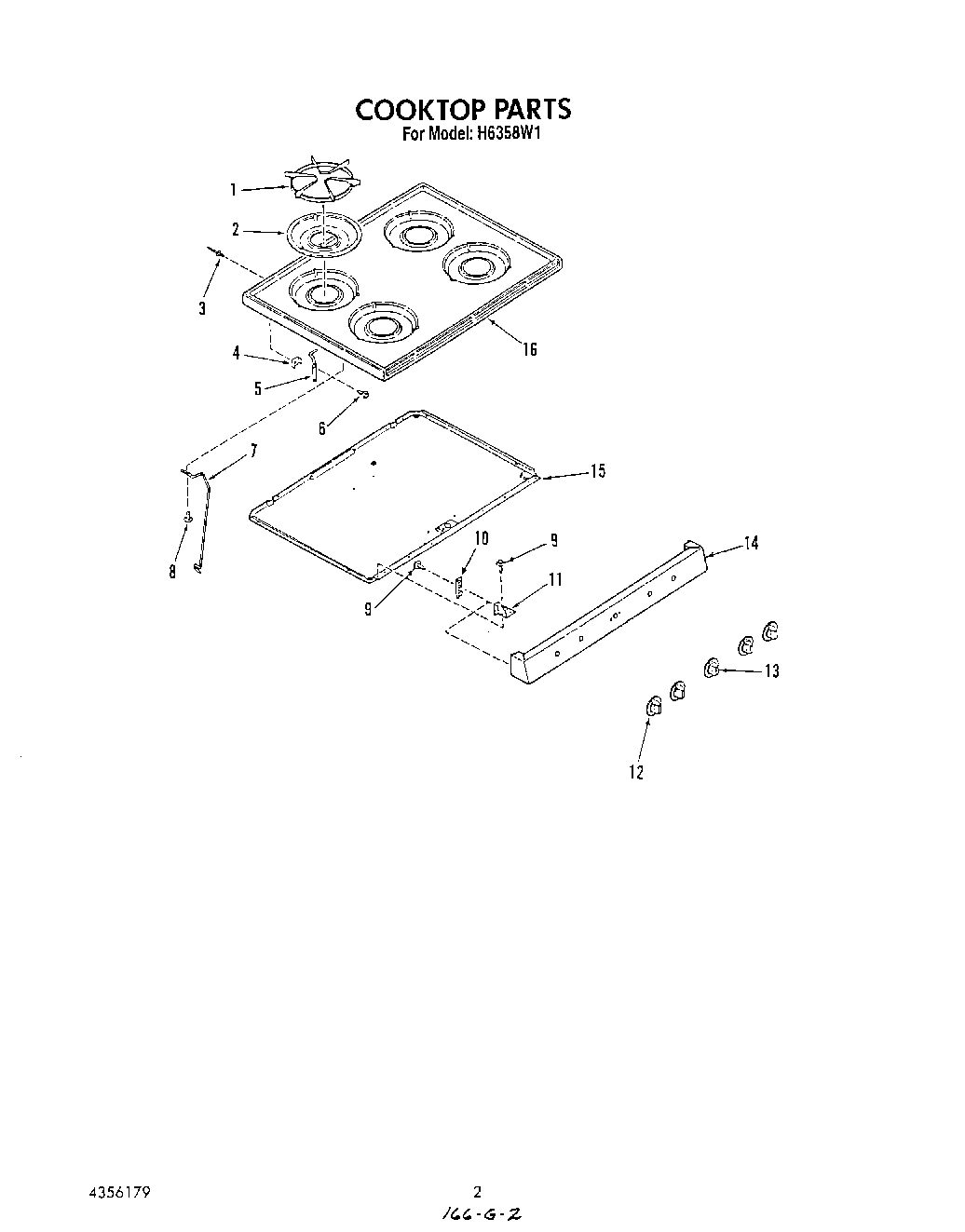

02 - COOK TOP

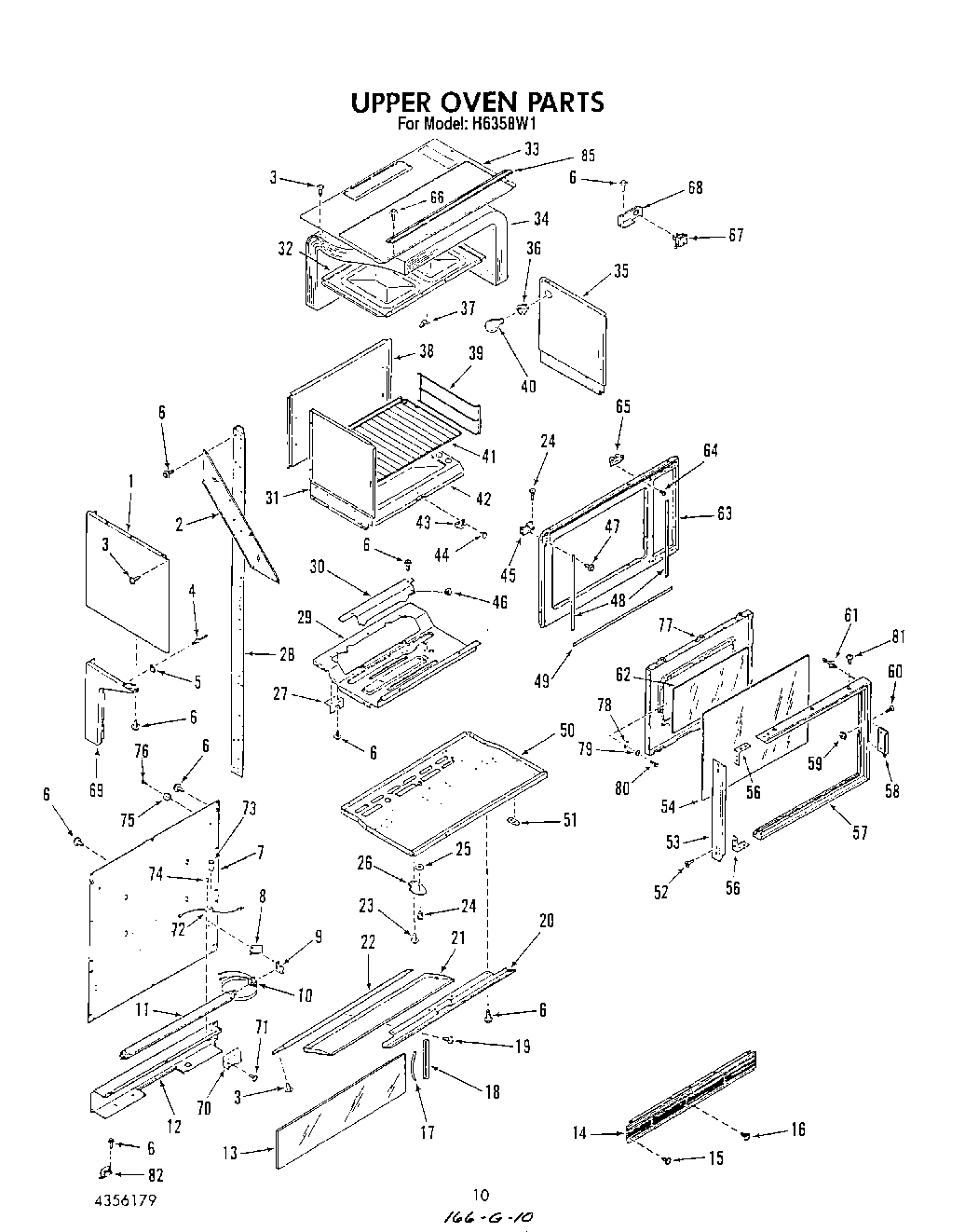

08 - UPPER OVEN

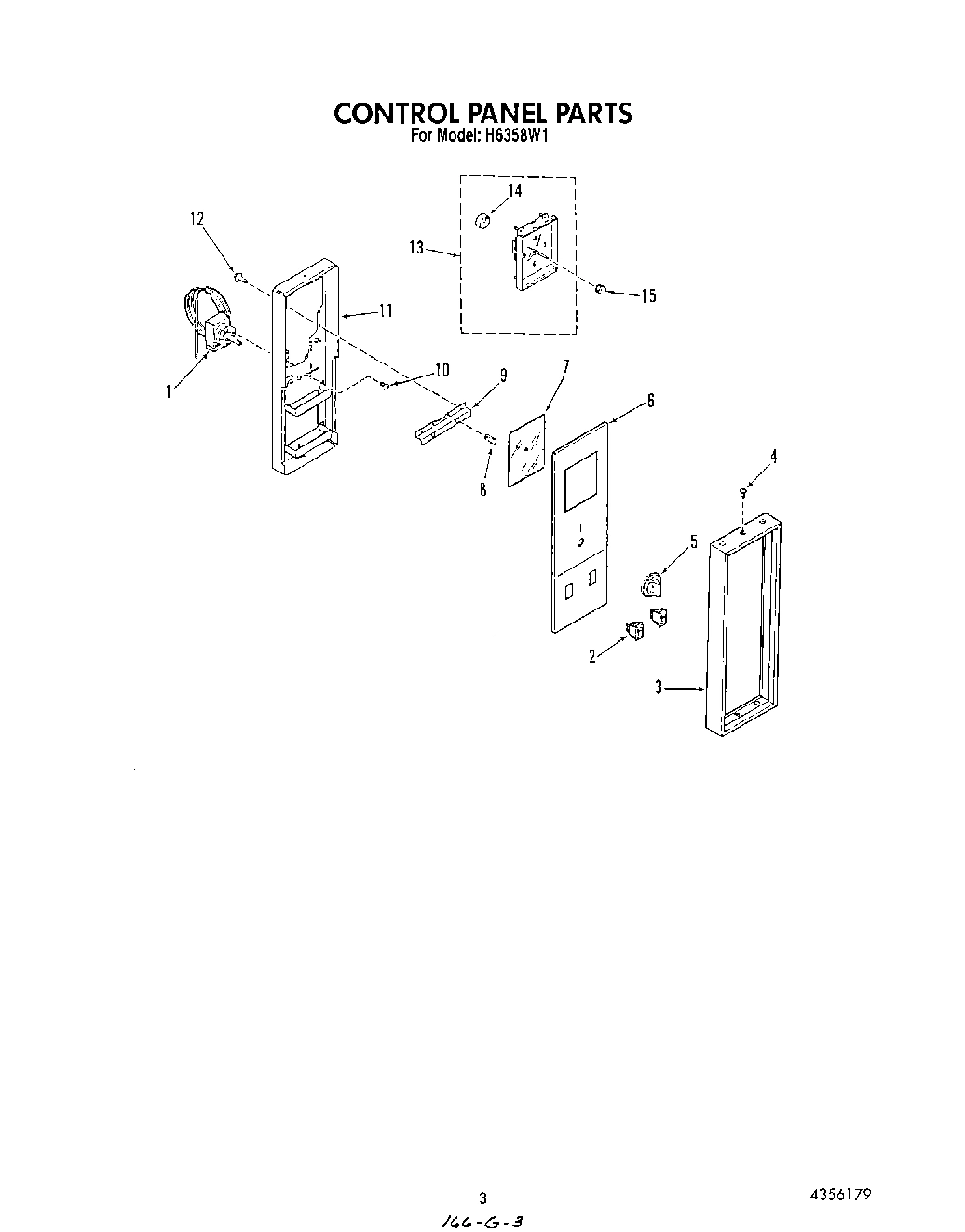

03 - CONTROL PANEL

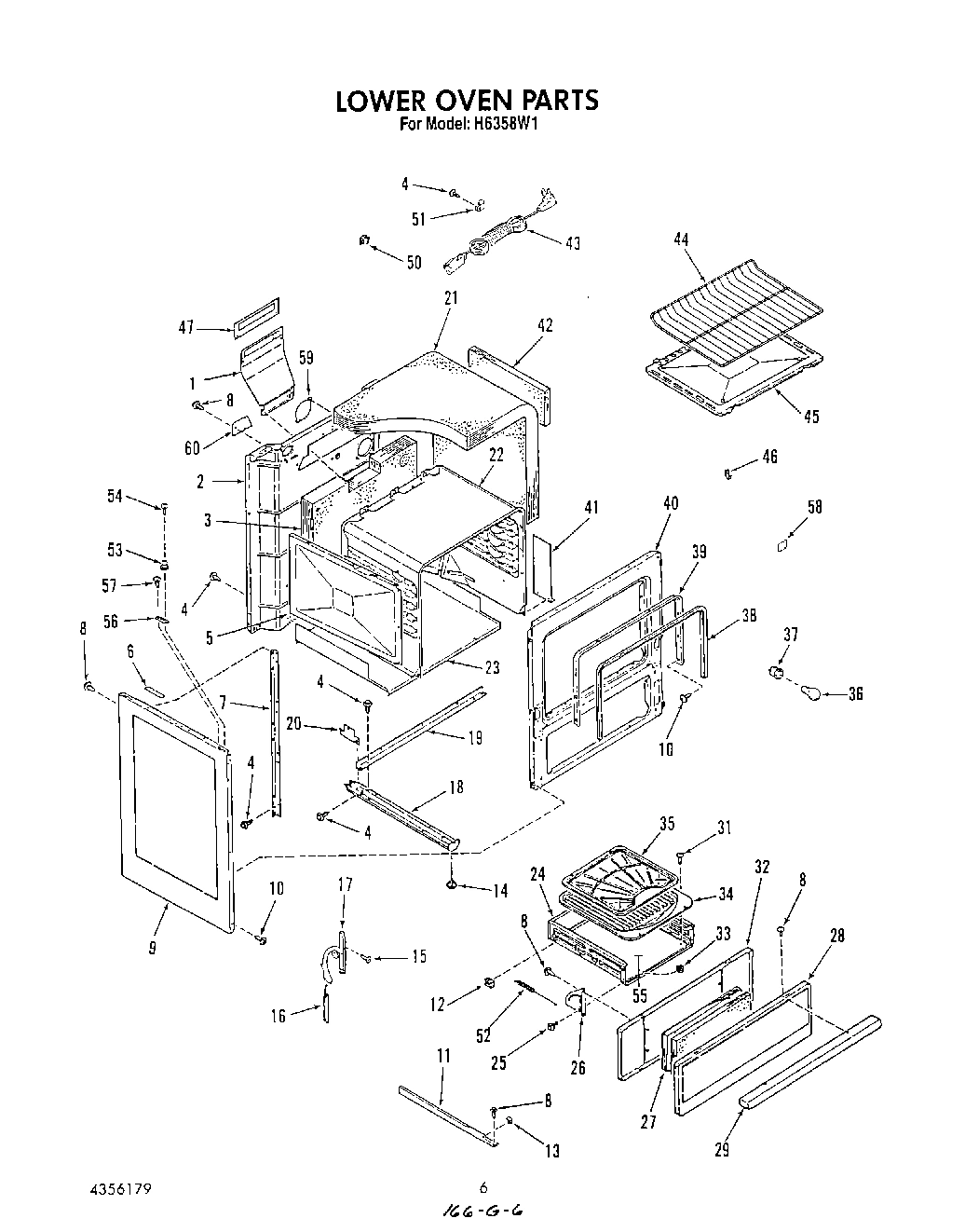

05 - LOWER OVEN

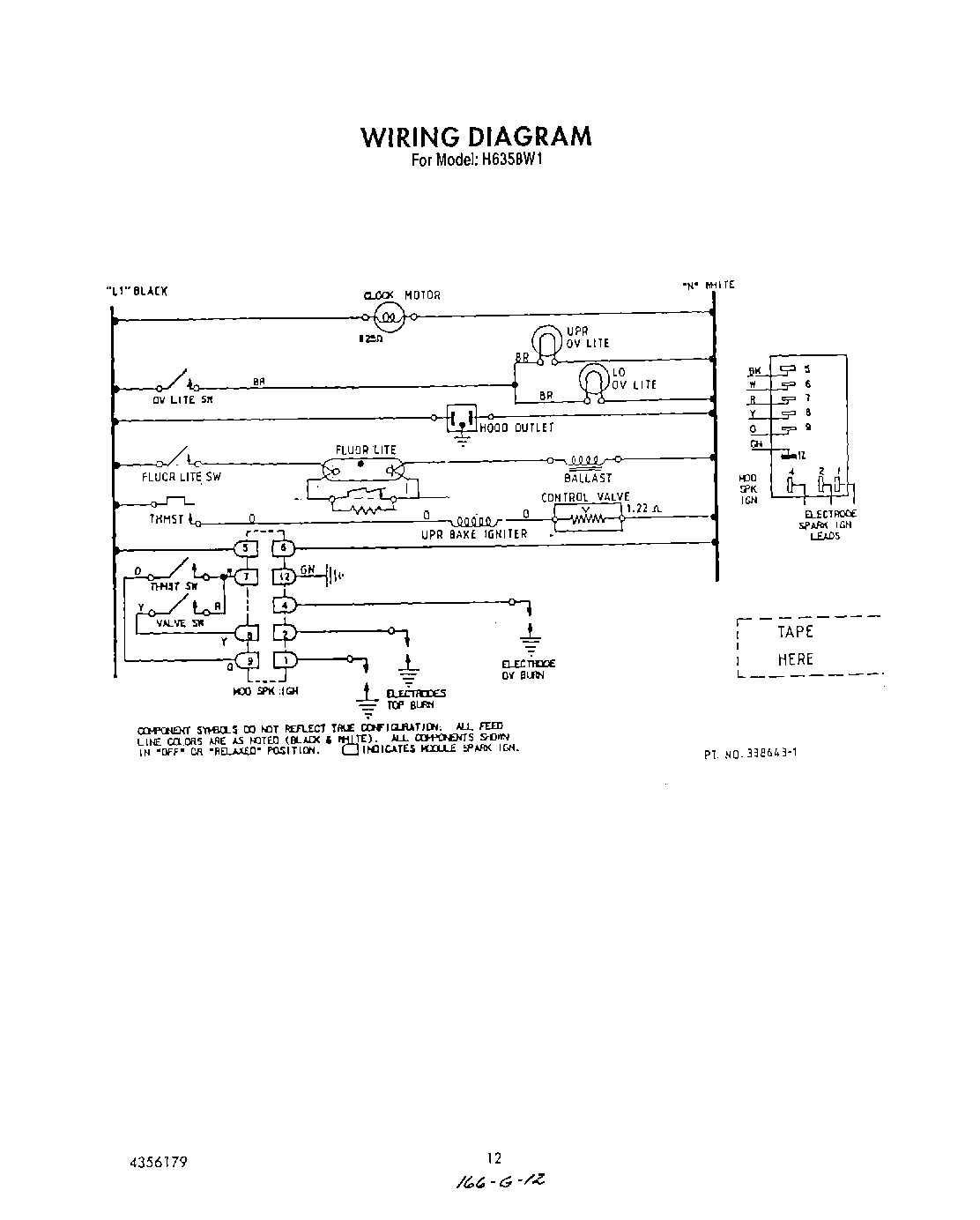

10 - WIRING DIAGRAM

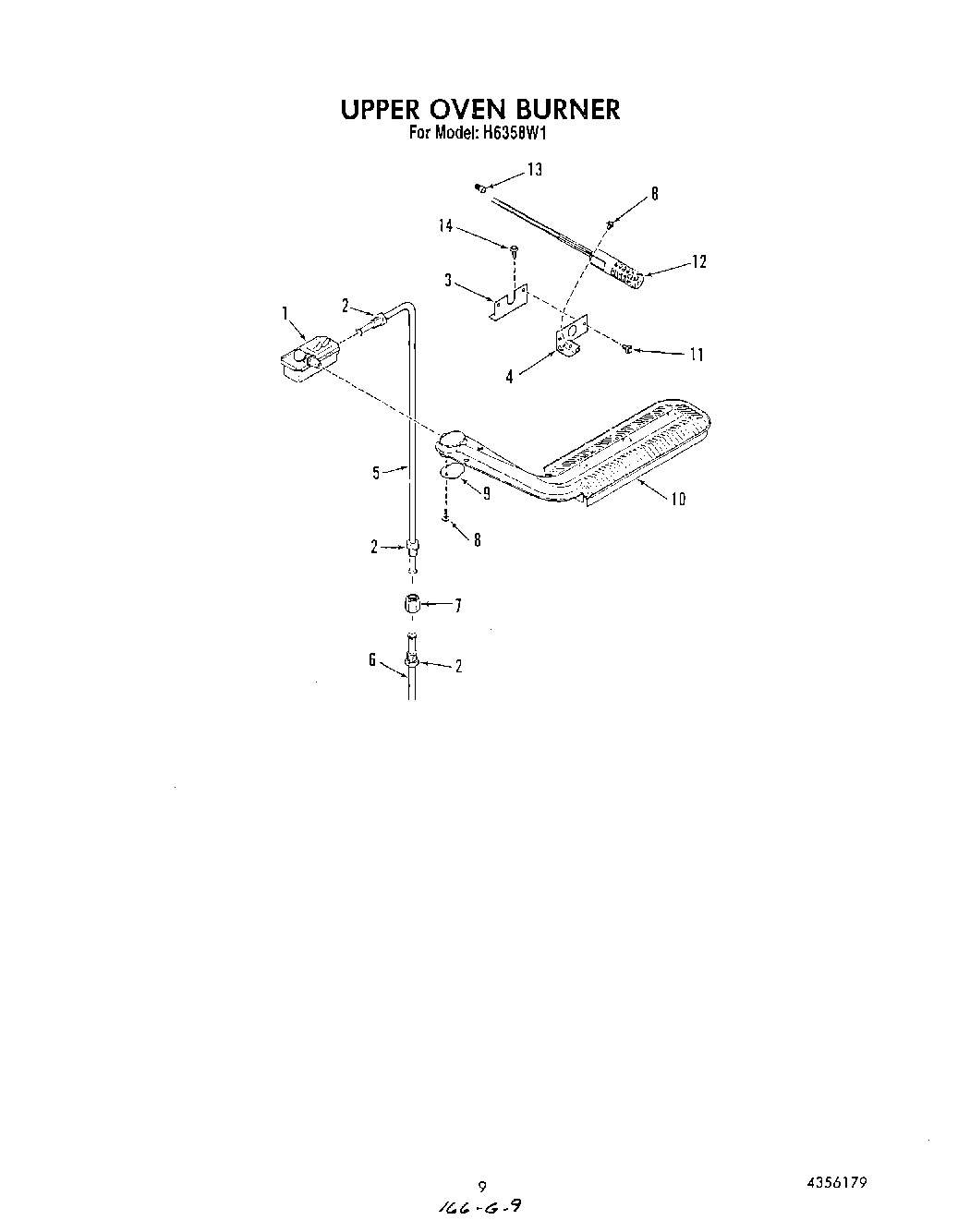

07 - UPPER OVEN BURNER

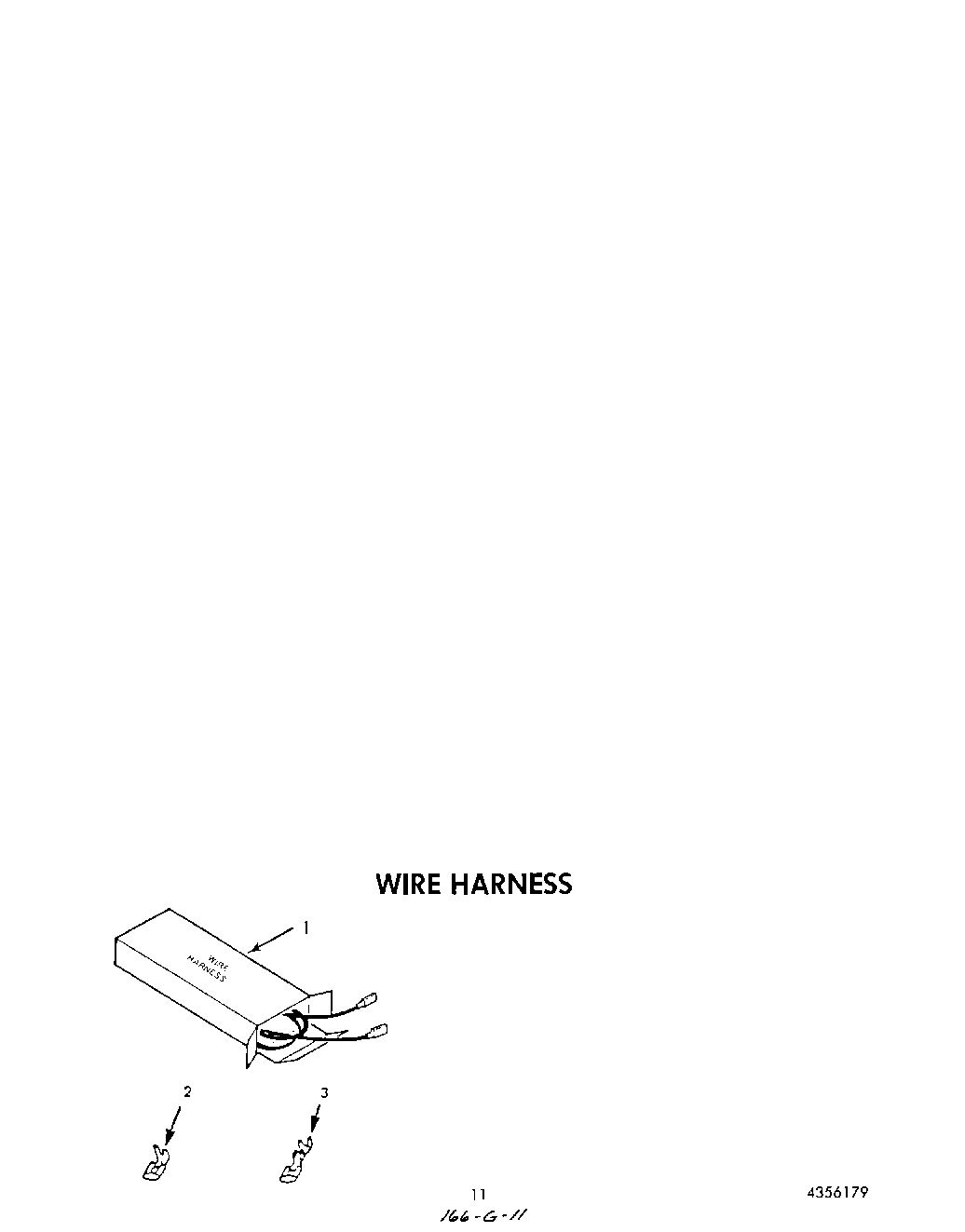

09 - WIRE HARNESS
Common parts from model Whirlpool H6358^1 GAS RANGE
1
Glass, Inner WPL 4334792 Contact Us For Availability
1
Grate, Burner (4) WPL 4336234 Contact Us For Availability
1
Side-Upper Oven (White - Right) WPL 4334011 Contact Us For Availability
1
Side-Upper Oven (Almond - Right) WPL 4334015 Contact Us For Availability
1
Side-Upper Oven (White - Left) WPL 4334016 Contact Us For Availability
1
Side-Upper Oven (Almond - Left) WPL 4334020 Contact Us For Availability
1
Thermostat WPL 4354508 Contact Us For Availability
1
Deflector WPL 4335162 Contact Us For Availability
1
Valve, Control WPL 4334960 Contact Us For Availability
1
Harness, Wire (Switch) WPL 4335086 Contact Us For Availability
1
Harness, Wire (Main - Lower) WPL 4338100 Contact Us For Availability
1
Harness, Wire (Main - Upper) WPL 4338623 Contact Us For Availability
2
Pan, Aeration WPL 4336770 Contact Us For Availability
2
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
2
Glass, Outer WPL 4336721 Contact Us For Availability
2
Brace-Cabinet Side (Lt/Rt) WPL 4334537 Contact Us For Availability
2
Back, Main WPL 4342679 Contact Us For Availability
2
Terminal, Flag WPL 4325035 Contact Us For Availability
3
Cushion WPL 4324217 Contact Us For Availability
3
Rivet WPL 4338425 Contact Us For Availability
3
Frame, Control Panel WPL 4325813 Contact Us For Availability
3
Insulation-Back WPL 4354817 Contact Us For Availability
3
Bracket, Igniter WPL 4334578 Contact Us For Availability
3
Terminal, Faston (3/16``) WPL 4325036 Contact Us For Availability
4
Frame WPL 4336720 Contact Us For Availability
4
Bracket, Hinge WPL 4337624 Contact Us For Availability
4
Bracket, Igniter WPL 4331163 Contact Us For Availability
5
Burner, Front-Lt. or Rt. (Incl. No.8) WPL 4342875 Contact Us For Availability
5
Handle WPL 4336828 Contact Us For Availability
5
Hinge (Right) WPL 4333234 Contact Us For Availability
5
Hinge (Left) WPL 4333235 Contact Us For Availability
5
Retainer WPL 4326169 Contact Us For Availability
5
Knob, Thermostat WPL 4342673 Contact Us For Availability
5
Tubing 3/8`` (Union To Control Valve) WPL 4325566 Contact Us For Availability
6
Tubing 3/8`` (Union To Shut-off Valve) WPL 4332282 Contact Us For Availability
6
Spacer, Handle WPL 4323997 Contact Us For Availability
6
Control Panel WPL 4342674 Contact Us For Availability
6
Spacer (Lt/Rt) WPL 4337485 Contact Us For Availability
7
Support-Top Burner WPL 4338389 Contact Us For Availability
7
Rod, Support WPL 4338088 Contact Us For Availability
7
Cover, Wire WPL 4334347 Contact Us For Availability
7
Lens, Clock WPL 4334520 Contact Us For Availability
7
Support, Side (Lt/Rt) WPL 4335147 Contact Us For Availability
7
Union 3/8`` WPL 4324275 Contact Us For Availability
8
Screw WPL 4335339 Contact Us For Availability
8
Washer WPL 4336868 Contact Us For Availability
8
Shield, Wire WPL 4333305 Contact Us For Availability
8
Clip, Tubular (4) WPL 4327282 Contact Us For Availability
8
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
9
Air Shutter WPL 4333875 Contact Us For Availability
9
Bracket, Lamp, (Lt/Rt) WPL 4337894 Contact Us For Availability
9
Bracket, Clock (2) WPL 4335534 Contact Us For Availability
9
Side-Body (Lt/Rt) (White) WPL 4337591 Contact Us For Availability
9
Side-Body (Lt/Rt) (Almond) WPL 4337593 Contact Us For Availability
10
Spacer, Glass WPL 4336869 Contact Us For Availability
10
Cleat WPL 4337625 Contact Us For Availability
10
Holder, Lamp (Left) WPL 4338150 Contact Us For Availability
10
Holder, Lamp (Right) WPL 4338151 Contact Us For Availability
10
Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability
10
Oven Burner WPL 4336670 Contact Us For Availability
11
Nut, Loxit WPL 4323489 Contact Us For Availability
11
Screw, No.10-32x17/32`` WPL 4323884 Contact Us For Availability
11
Bracket, Manifold (Right) WPL 4336962 Contact Us For Availability
11
Bracket, Manifold (Left) WPL 4336963 Contact Us For Availability
11
Lamp, Fluorescent (20 Watt - 24``) WPL 4323434 Contact Us For Availability
11
Mounting, Control Panel WPL 4342675 Contact Us For Availability
11
Guide-Bro. Drawer (Left side) WPL 4337201 Contact Us For Availability
11
Guide-Bro. Drawer (Right Side) WPL 4337202 Contact Us For Availability
11
Screw, No.10 x 3/8 WPL 4323394 Contact Us For Availability
12
Retainer WPL 4335755 Contact Us For Availability
12
Knob, Gas Valve WPL 4337120 Contact Us For Availability
12
Cover, Wire-Lamp WPL 4338110 Contact Us For Availability
12
Slide Block-Rear WPL 4337369 Contact Us For Availability
12
Igniter WPL 4338008 Contact Us For Availability
13
Seal WPL 4331164 Contact Us For Availability
13
Insulation WPL 4354748 Contact Us For Availability
13
Knob, Thermostat WPL 4342677 Contact Us For Availability
13
Glass, Lamp WPL 4338096 Contact Us For Availability
13
Clock W/1 Hr.Timer (60 Cycle) WPL 4335738 Contact Us For Availability
13
Clock W/1 Hr.Timer (50 Cycle (Opt.)) WPL 4342676 Contact Us For Availability
13
Slide Block-Front WPL 4337370 Contact Us For Availability
14
Screw WPL 4332668 Contact Us For Availability
14
Lining WPL 4334773 Contact Us For Availability
14
Panel, Manifold WPL 4337570 Contact Us For Availability
14
Retainer, Lamp WPL 4335340 Contact Us For Availability
14
Motor, Clock (60 Cycle) WPL 4325989 Contact Us For Availability
14
Motor, Clock (50 Cycle (Opt.)) WPL 4325990 Contact Us For Availability
14
Leveler Leg (4) WPL 4334834 Contact Us For Availability
15
Seal WPL 4332709 Contact Us For Availability
15
Screw No.10-32x5/8 WPL 4336631 Contact Us For Availability
15
Retainer WPL 4342666 Contact Us For Availability
15
Bottom, Burner Box WPL 4338429 Contact Us For Availability
15
Knob, Clock WPL 4337111 Contact Us For Availability
16
Seal WPL 4332708 Contact Us For Availability
16
Washer, Felt WPL 4337618 Contact Us For Availability
16
Top, Main (White) WPL 4336778 Contact Us For Availability
16
Top, Main (Almond) WPL 4336779 Contact Us For Availability
16
Spring, Oven Door WPL 4337297 Contact Us For Availability
17
Hinge-Oven Door (Left) WPL 4336784 Contact Us For Availability
17
Hinge-Oven Door (Right) WPL 4336783 Contact Us For Availability
17
Switch, Thermostat WPL 4332653 Contact Us For Availability
17
Spring-Trim End (Lt/Rt) WPL 4326279 Contact Us For Availability
18
Thermostat, (Inc`s No.16) WPL 4336370 Contact Us For Availability
18
Trim, End (Lt/Rt) WPL 4328064 Contact Us For Availability
18
Base W/Levelers, (Lt/Rt) WPL 4335140 Contact Us For Availability
19
Screw No.6-32x1/2 WPL 4328025 Contact Us For Availability
19
Support, Base WPL 4335261 Contact Us For Availability
20
Gas Valve, (Inc`s No.21) WPL 4336715 Contact Us For Availability
20
Filler, Trim (White) WPL 4333992 Contact Us For Availability
20
Filler, Trim (Almond) WPL 4333996 Contact Us For Availability
20
Bracket, Support (Left) WPL 4335141 Contact Us For Availability
20
Bracket, Support (Right) WPL 4335142 Contact Us For Availability
21
Cover, Vent (White) WPL 4333422 Contact Us For Availability
21
Cover, Vent (Almond) WPL 4333426 Contact Us For Availability
21
Insulation-Top & Sides WPL 4354750 Contact Us For Availability
22
Pipe, Manifold WPL 4338414 Contact Us For Availability
22
Retainer, Upper (White) WPL 4333006 Contact Us For Availability
22
Retainer, Upper (Almond) WPL 4333010 Contact Us For Availability
22
Oven Body WPL 4337600 Contact Us For Availability
23
Regulator-Pressure WPL 4334271 Contact Us For Availability
23
Bottom, Main WPL 4335153 Contact Us For Availability
24
Tubing 3/8``, (Inc`s No.9) WPL 4342678 Contact Us For Availability
24
Pin, Hinge WPL 4325683 Contact Us For Availability
24
Drawer, Broiler WPL 4342680 Contact Us For Availability
25
Baffle, Oven Burn WPL 4336021 Contact Us For Availability
25
Washer WPL 4334861 Contact Us For Availability
25
Bolt, Shoulder WPL 4335999 Contact Us For Availability
26
Burner Assembly, (Inc`s 25, 29, 30) WPL 4336130 Contact Us For Availability
26
Hinge, Lower Door WPL 4334021 Contact Us For Availability
26
Hinge, Bro. Door (Left) WPL 4338606 Contact Us For Availability
26
Hinge, Bro. Door (Right) WPL 4338607 Contact Us For Availability
27
Screw, No.10-32 x 2 WPL 4333826 Contact Us For Availability
27
Bracket, Orifice WPL 4324079 Contact Us For Availability
28
Valve, Control WPL 4333475 Contact Us For Availability
28
Support-Upper Oven (Lt/Rt) WPL 4338547 Contact Us For Availability
28
Panel, Bro. Door WPL 4342632 Contact Us For Availability
29
Shutter, Air WPL 4331501 Contact Us For Availability
29
Baffle, Burner WPL 4328724 Contact Us For Availability
29
Handle WPL 4336754 Contact Us For Availability
30
Screw, Adjustment WPL 4331502 Contact Us For Availability
30
Plate, Access WPL 4328725 Contact Us For Availability
31
Pilot (Inc`s 35) WPL 4332674 Contact Us For Availability
31
Side, Oven-Left WPL 4334060 Contact Us For Availability
31
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
32
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
32
Top, Oven WPL 4327383 Contact Us For Availability
32
Lining, Broiler Door WPL 4342681 Contact Us For Availability
33
Sleeve, Compress. WPL 4350216 Contact Us For Availability
33
Top, Cabinet (White) WPL 4338412 Contact Us For Availability
33
Top, Cabinet (Almond) WPL 4338413 Contact Us For Availability
34
Nut, Compress.3/16 WPL 4323359 Contact Us For Availability
34
Insulation, Sides-Top & Back (1 Pc.) WPL 4354658 Contact Us For Availability
34
Pan, Broiler WPL 4336603 Contact Us For Availability
35
Orifice Cup WPL 4332673 Contact Us For Availability
35
Side, Oven-Right WPL 4334059 Contact Us For Availability
35
Grid, Broiler Pan WPL 4336598 Contact Us For Availability
36
Electrode WPL 4335201 Contact Us For Availability
37
Screw, No.6 x 3/8 WPL 4324445 Contact Us For Availability
38
Tubing 3/16 WPL 4354564 Contact Us For Availability
38
Back, Oven WPL 4329371 Contact Us For Availability
38
Seal, Oven Door WPL 4354751 Contact Us For Availability
39
Screw, No.8-32 x 3/8 WPL 4342637 Contact Us For Availability
39
Guide, Oven Rack (Lt/Rt) WPL 4329398 Contact Us For Availability
39
Retainer, Oven-Door-Seal WPL 4335426 Contact Us For Availability
40
Clip WPL 4337581 Contact Us For Availability
40
Frame, Front WPL 4338085 Contact Us For Availability
41
Rack, Oven (1) WPL 4329399 Contact Us For Availability
41
Retainer, Insul., (Lt/Rt) WPL 4335889 Contact Us For Availability
42
Bottom, Oven, (Inc`s 43,44) WPL 4326607 Contact Us For Availability
42
Insulation (Rt/Lt) WPL 4327653 Contact Us For Availability
43
Valve, Shut Off WPL 4335080 Contact Us For Availability
43
Clip WPL 4334579 Contact Us For Availability
43
Cord, Service WPL 4351709 Contact Us For Availability
44
Seal WPL 4331665 Contact Us For Availability
44
Rivet WPL 4337328 Contact Us For Availability
44
Rack, Oven (2) WPL 4354754 Contact Us For Availability
45
Screw WPL 4331097 Contact Us For Availability
45
Hinge, Upper-Door WPL 4325688 Contact Us For Availability
45
Bottom, Oven WPL 4335164 Contact Us For Availability
46
Clip, Thermostat WPL 4333390 Contact Us For Availability
46
Eyelet WPL 4323684 Contact Us For Availability
47
Insulation, Flue Deflector WPL 4336020 Contact Us For Availability
48
Seal, Door-Side WPL 4327162 Contact Us For Availability
49
Seal, Do WPL 4327163 Contact Us For Availability
50
WPL 4334008 WPL 4334008 Contact Us For Availability
50
Disconnect WPL 4324642 Contact Us For Availability
51
WPL 4334139 WPL 4334139 Contact Us For Availability
51
Clamp WPL 4323987 Contact Us For Availability
52
WPL 4338421 WPL 4338421 Contact Us For Availability
52
Spring, Broiler-Drawer WPL 4335295 Contact Us For Availability
53
WPL 4325705 WPL 4325705 Contact Us For Availability
53
Strike WPL 4337082 Contact Us For Availability
54
WPL 4342684 WPL 4342684 Contact Us For Availability
54
WPL 4335220 WPL 4335220 Contact Us For Availability
55
WPL 4336575 WPL 4336575 Contact Us For Availability
56
WPL 4327160 WPL 4327160 Contact Us For Availability
56
WPL 4337183 WPL 4337183 Contact Us For Availability
56
WPL 4337184 WPL 4337184 Contact Us For Availability
57
WPL 4338182 WPL 4338182 Contact Us For Availability
57
WPL 4329272 WPL 4329272 Contact Us For Availability
58
WPL 4327204 WPL 4327204 Contact Us For Availability
58
WPL 4338588 WPL 4338588 Contact Us For Availability
59
WPL 4342682 WPL 4342682 Contact Us For Availability
60
WPL 4332885 WPL 4332885 Contact Us For Availability
60
WPL 4342683 WPL 4342683 Contact Us For Availability
61
WPL 4327900 WPL 4327900 Contact Us For Availability
62
WPL 4328067 WPL 4328067 Contact Us For Availability
63
WPL 4336687 WPL 4336687 Contact Us For Availability
64
WPL 4323636 WPL 4323636 Contact Us For Availability
65
WPL 4323616 WPL 4323616 Contact Us For Availability
67
WPL 4324061 WPL 4324061 Contact Us For Availability
68
WPL 4327314 WPL 4327314 Contact Us For Availability
69
WPL 4334489 WPL 4334489 Contact Us For Availability
69
WPL 4334493 WPL 4334493 Contact Us For Availability
69
WPL 4334494 WPL 4334494 Contact Us For Availability
69
WPL 4334498 WPL 4334498 Contact Us For Availability
70
WPL 4334842 WPL 4334842 Contact Us For Availability
71
WPL 4336048 WPL 4336048 Contact Us For Availability
72
WPL 4337126 WPL 4337126 Contact Us For Availability
73
WPL 4337125 WPL 4337125 Contact Us For Availability
74
WPL 4327216 WPL 4327216 Contact Us For Availability
75
WPL 4342685 WPL 4342685 Contact Us For Availability
77
WPL 4329273 WPL 4329273 Contact Us For Availability
78
WPL 4328066 WPL 4328066 Contact Us For Availability
79
WPL 4323694 WPL 4323694 Contact Us For Availability
81
WPL 4337797 WPL 4337797 Contact Us For Availability
82
WPL 4323673 WPL 4323673 Contact Us For Availability
85
WPL 4342829 WPL 4342829 Contact Us For Availability
× ![]()
